Customer complaint
The motorcycle would not start even after the battery was recharged. Pressing the starter button repeatedly produced no cranking response. Because a charged battery does not automatically rule out a high-current electrical fault, the starting circuit needed to be tested before parts were replaced.
Electrical diagnosis
The battery voltage dropped sharply whenever the starter button was pressed. We traced the high current draw through the starting circuit and tested the starter motor directly. Direct power produced no movement, confirming that the starter was seized rather than the problem being limited to the battery or starter switch.
What failed
After removal, the starter motor was opened for inspection. The internal permanent magnets had detached from the housing and locked the armature. This is a known failure pattern on some aging starter motors and it cannot be corrected by charging or replacing the battery.
Access and replacement

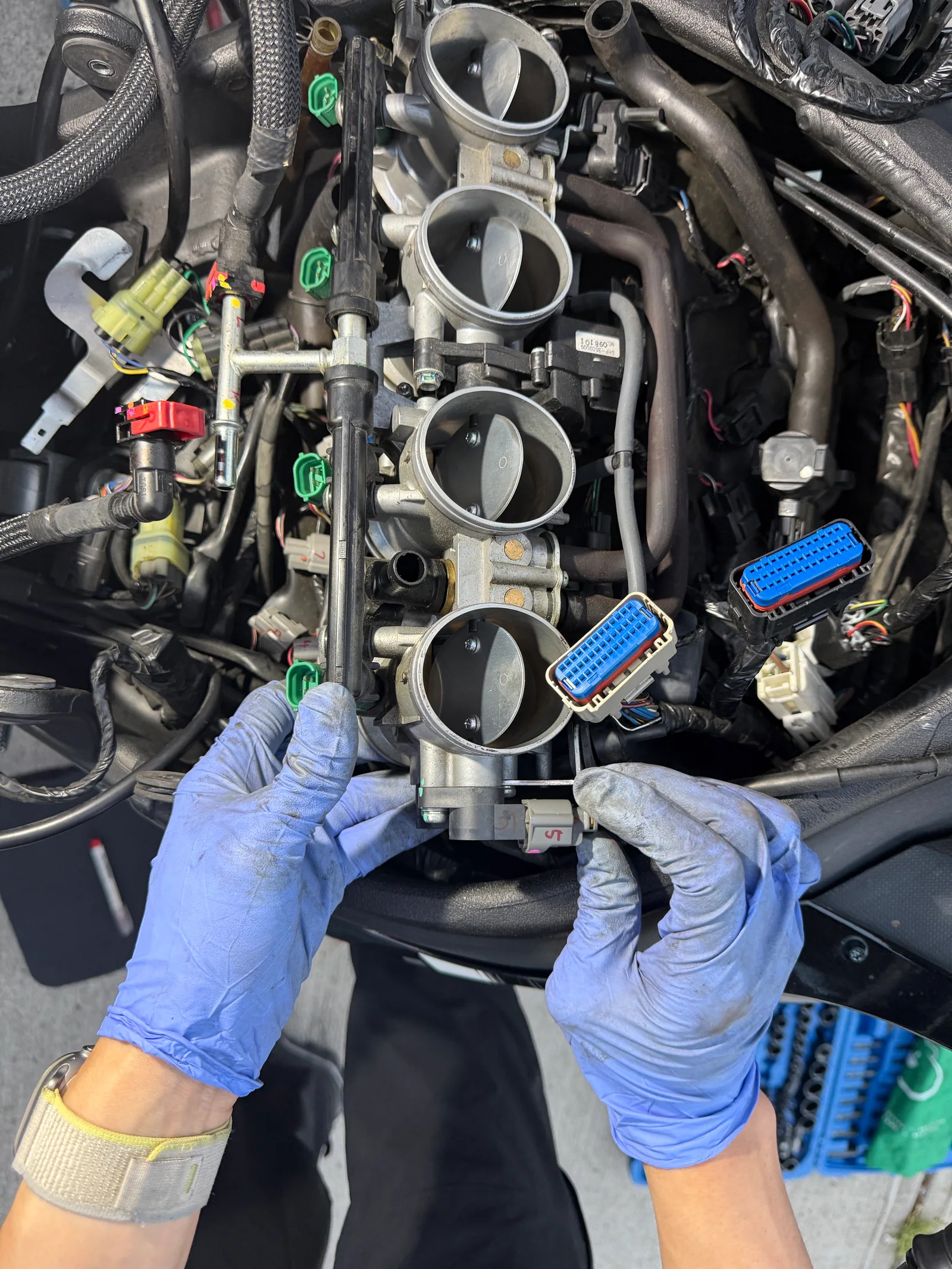

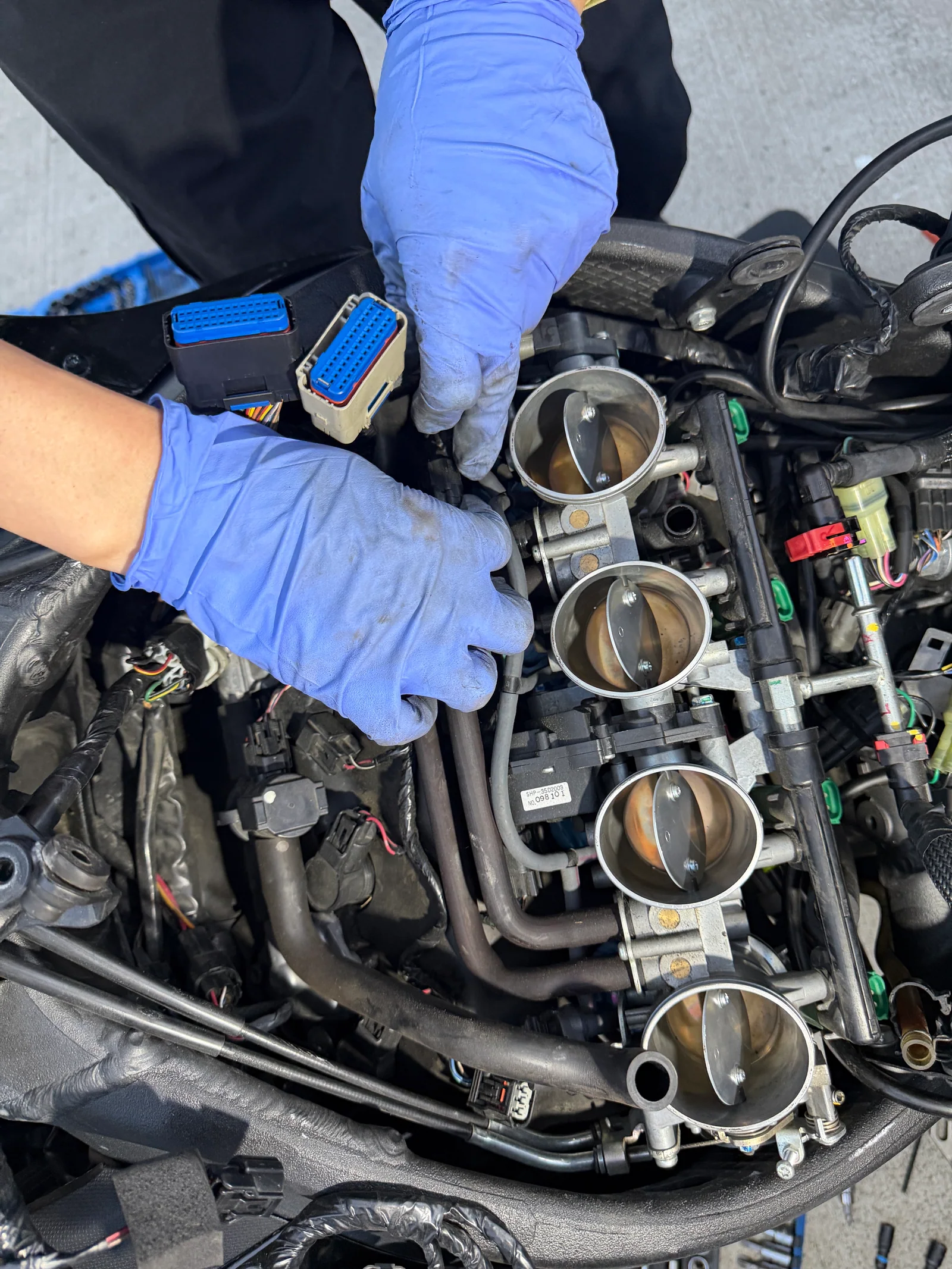

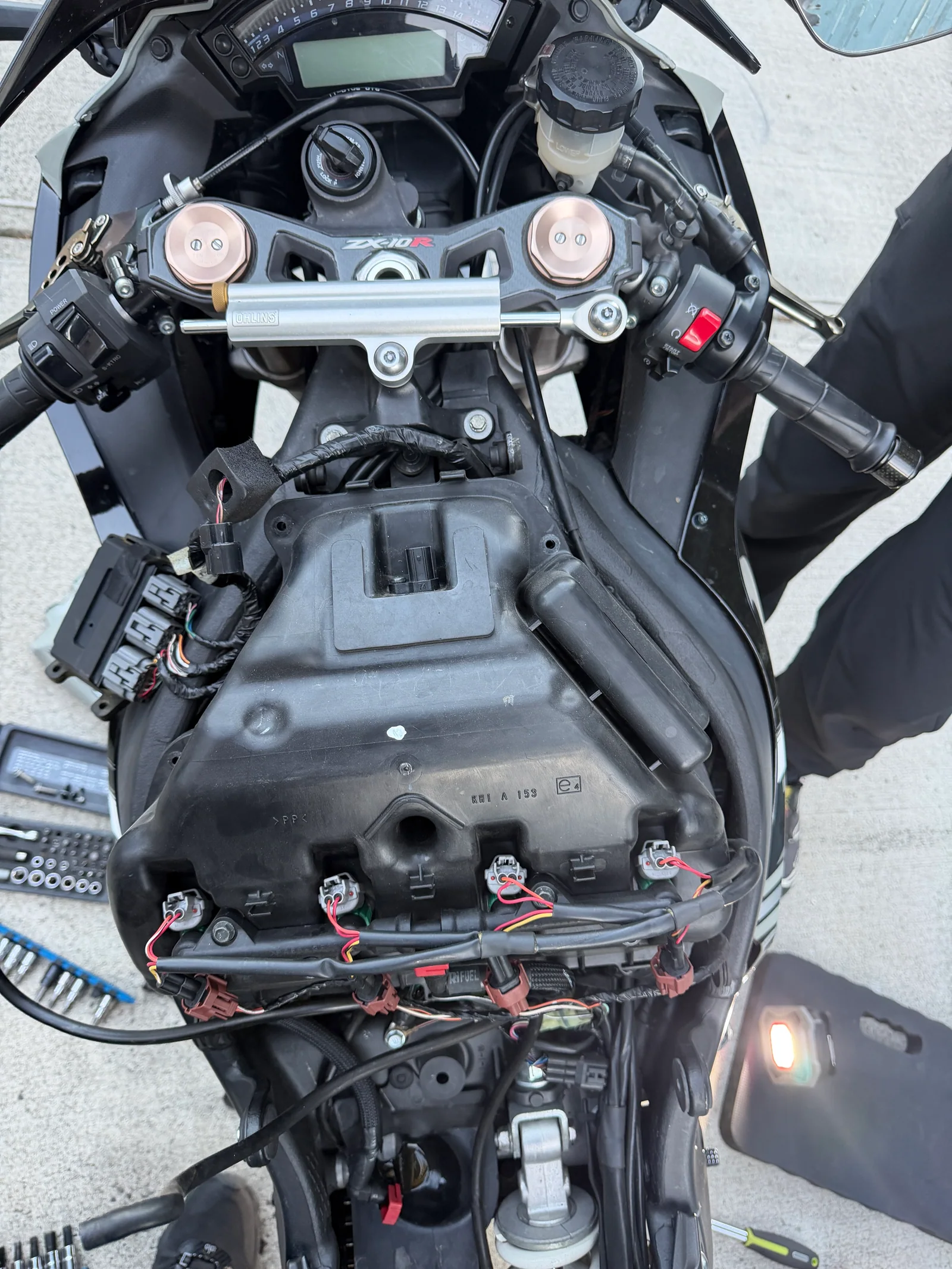

Starter access on the ZX-10R is involved. The fuel tank and upper airbox were removed first, followed by careful disconnection and movement of the throttle-body assembly, injector wiring, fuel connections and the relevant coolant hose. The repair photos below show these access stages; they do not show the starter motor itself. Once the starter was reached, a replacement unit was installed, with OEM and quality aftermarket options available depending on the customer's preference and parts availability.
Result

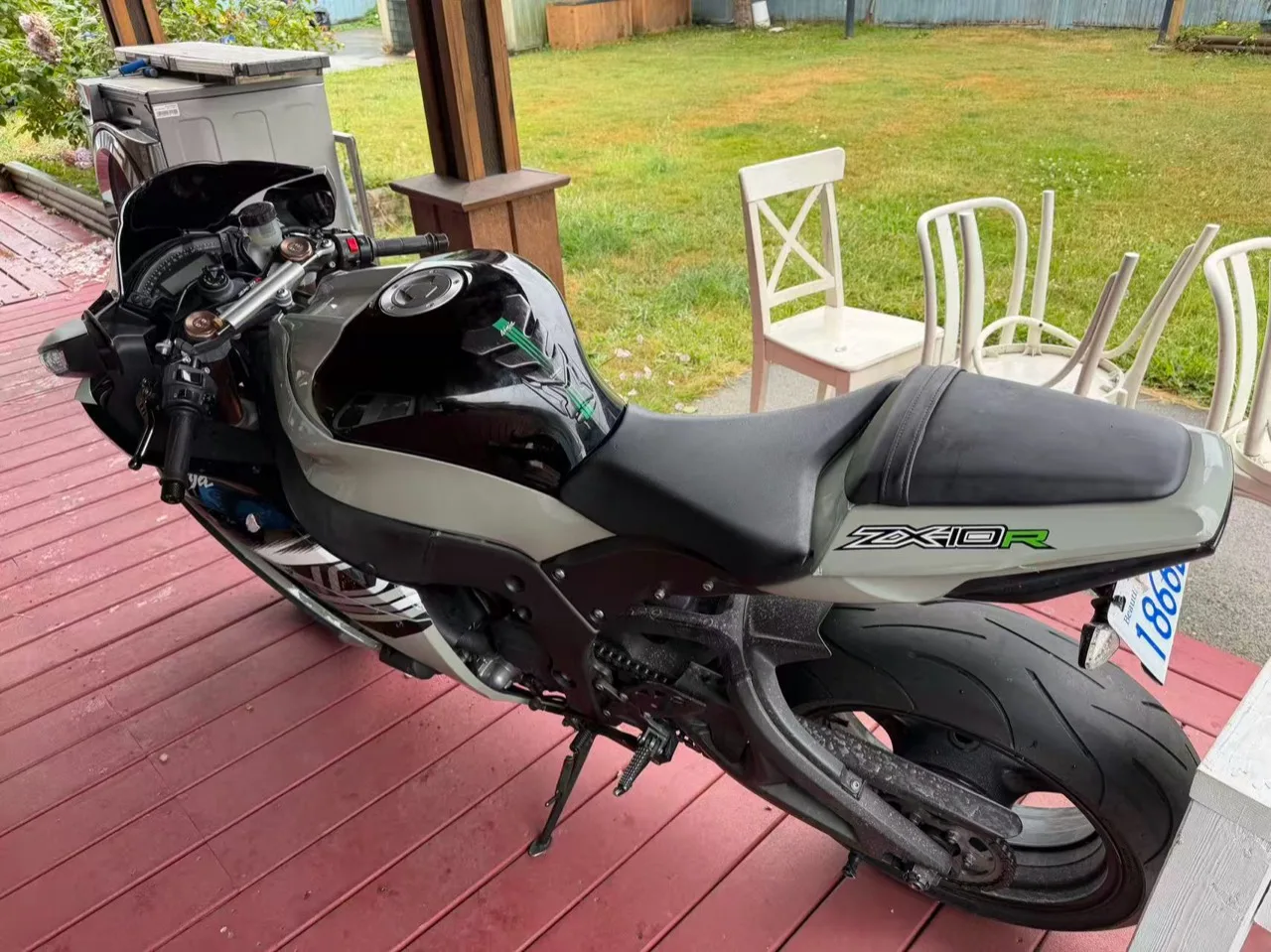

After reassembly, the engine cranked at normal speed and started correctly. The charging and starting operation were checked again before the motorcycle was returned to the customer.
A useful diagnostic lesson
A battery can show usable voltage at rest and still experience a major drop when a seized starter demands current. Testing voltage under load and confirming starter operation directly avoids guessing and unnecessary battery replacement.
