The starting point
The owner wanted to return the GPZ750 to a safe, rideable condition. Initial checks showed that the engine had the potential to run and that the carburetors and fuel delivery system were the main barriers to starting.
What we found

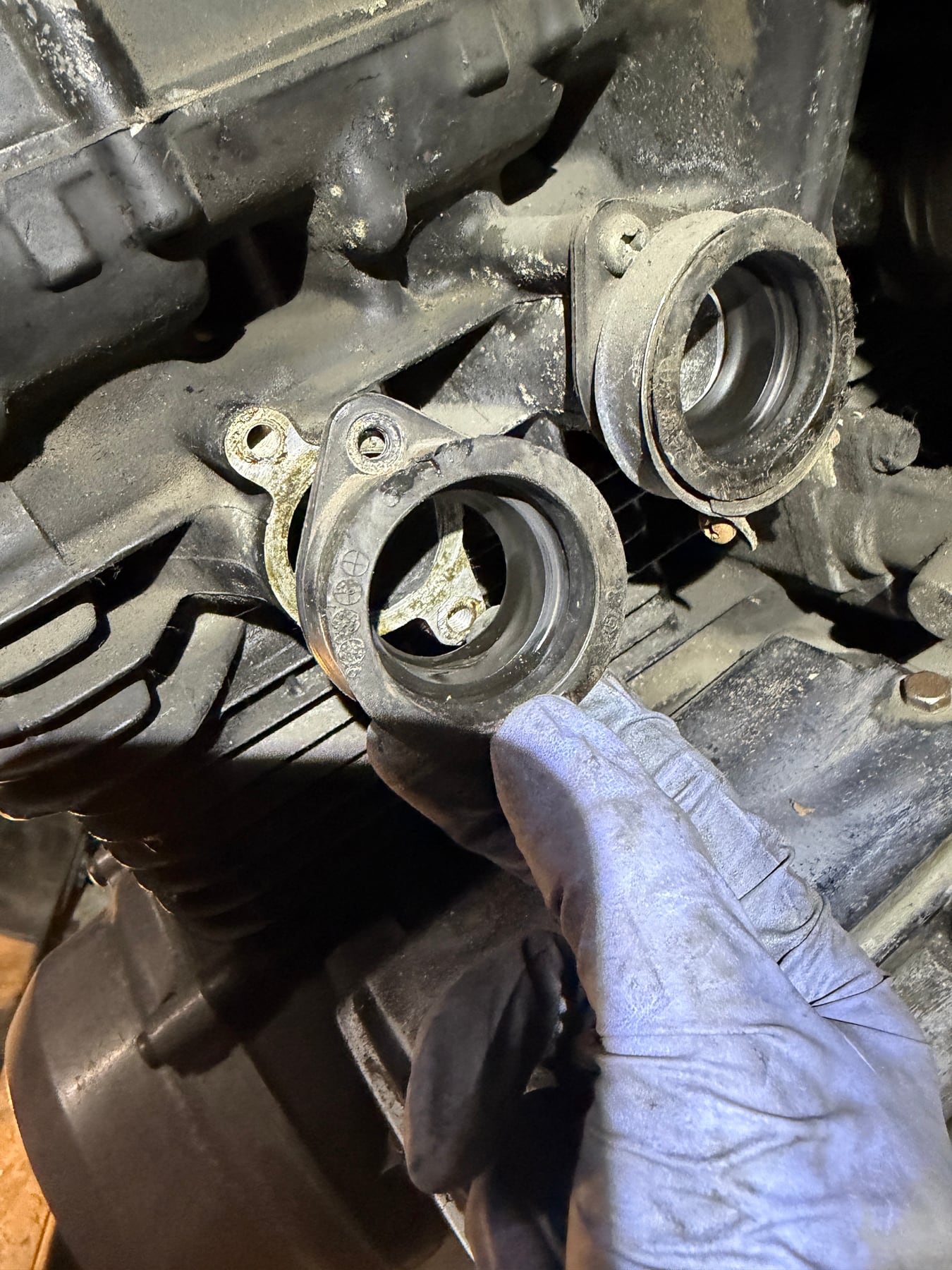

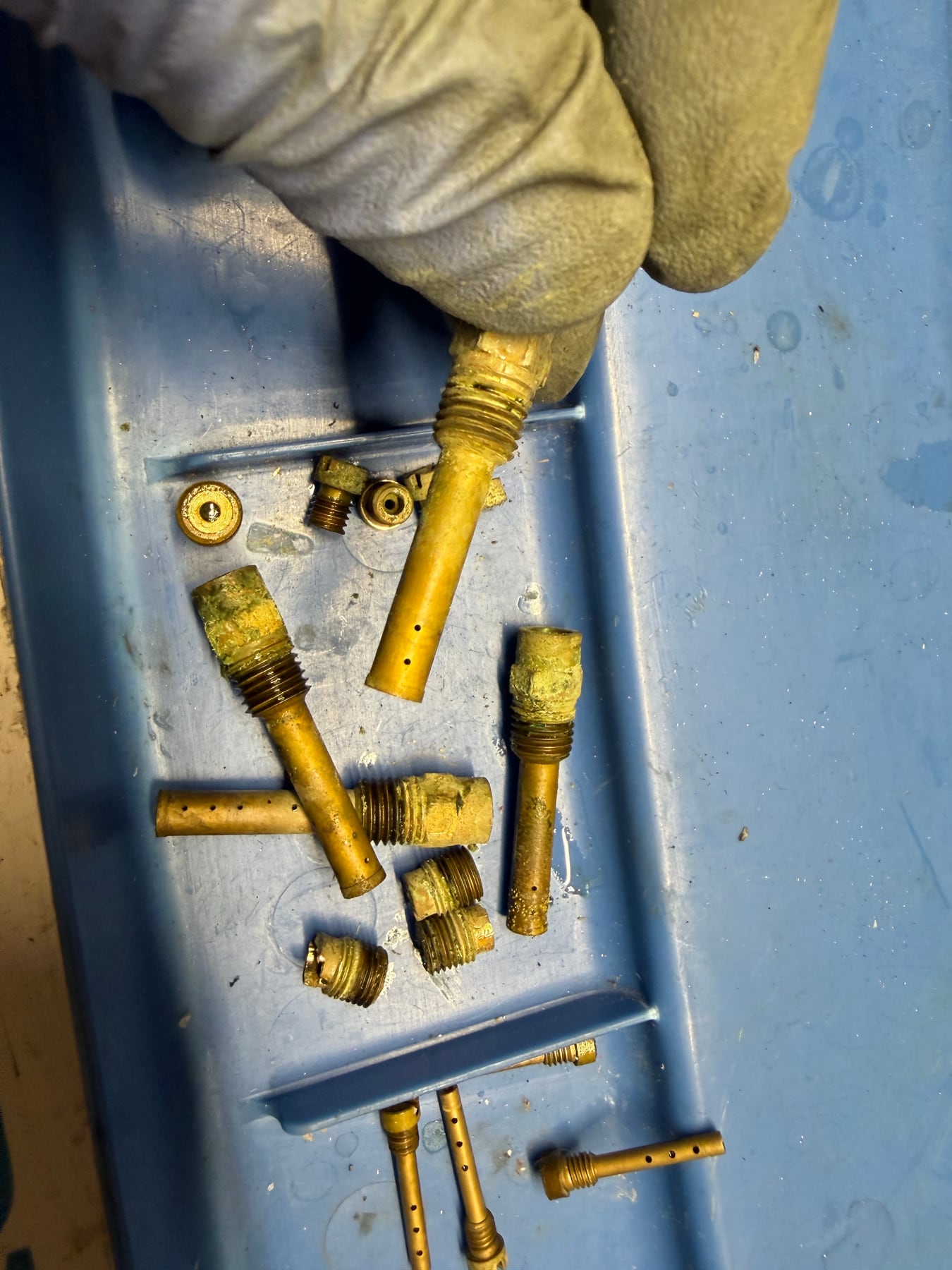

Years of old fuel had left gum and varnish inside the four carburetors. A fuel joint between two carburetors was leaking, several O-rings and rubber seals had hardened, and the intake boots and spark-plug boots showed age-related deterioration. The old engine oil also needed to be drained and replaced.
Work completed

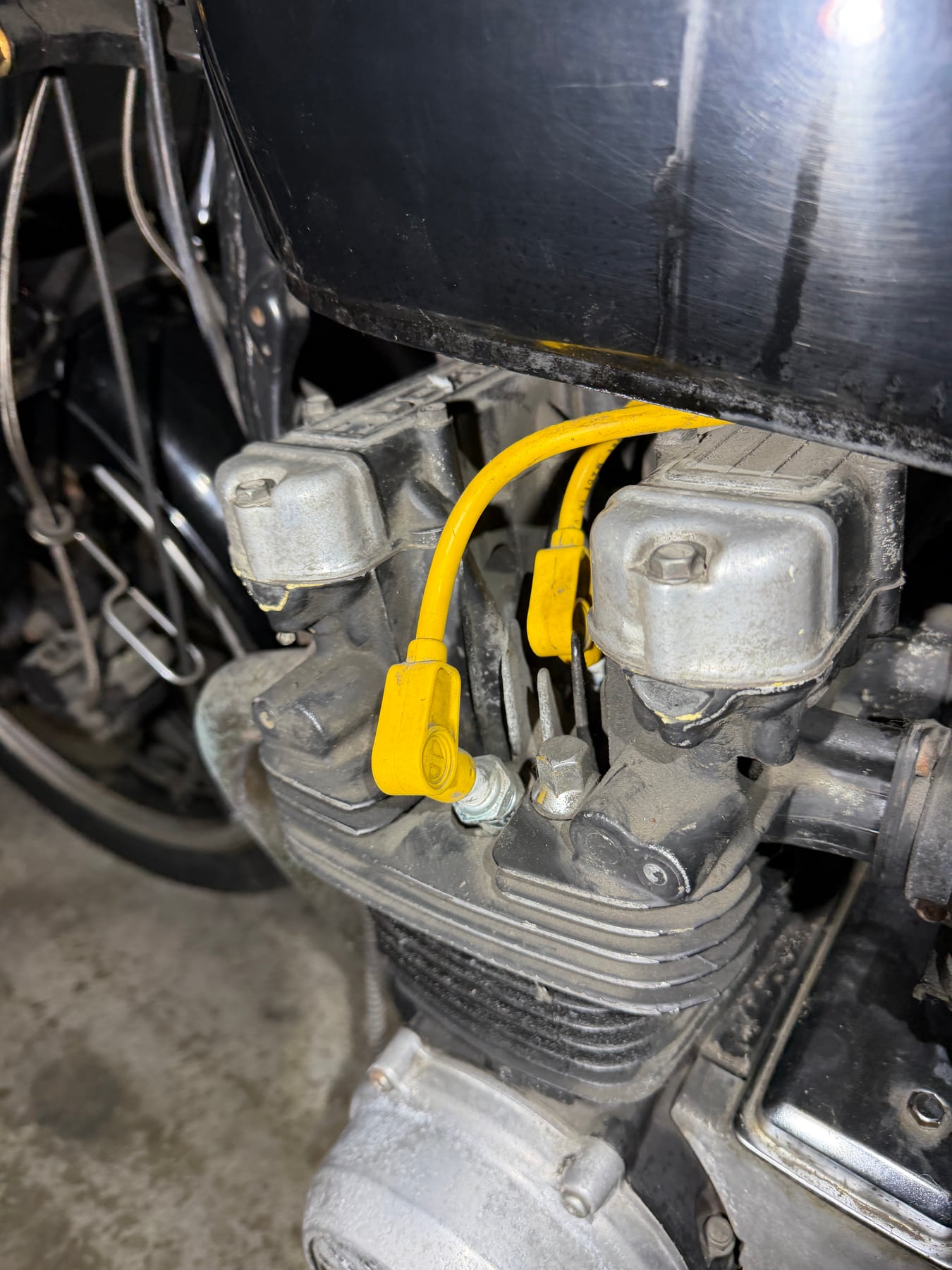

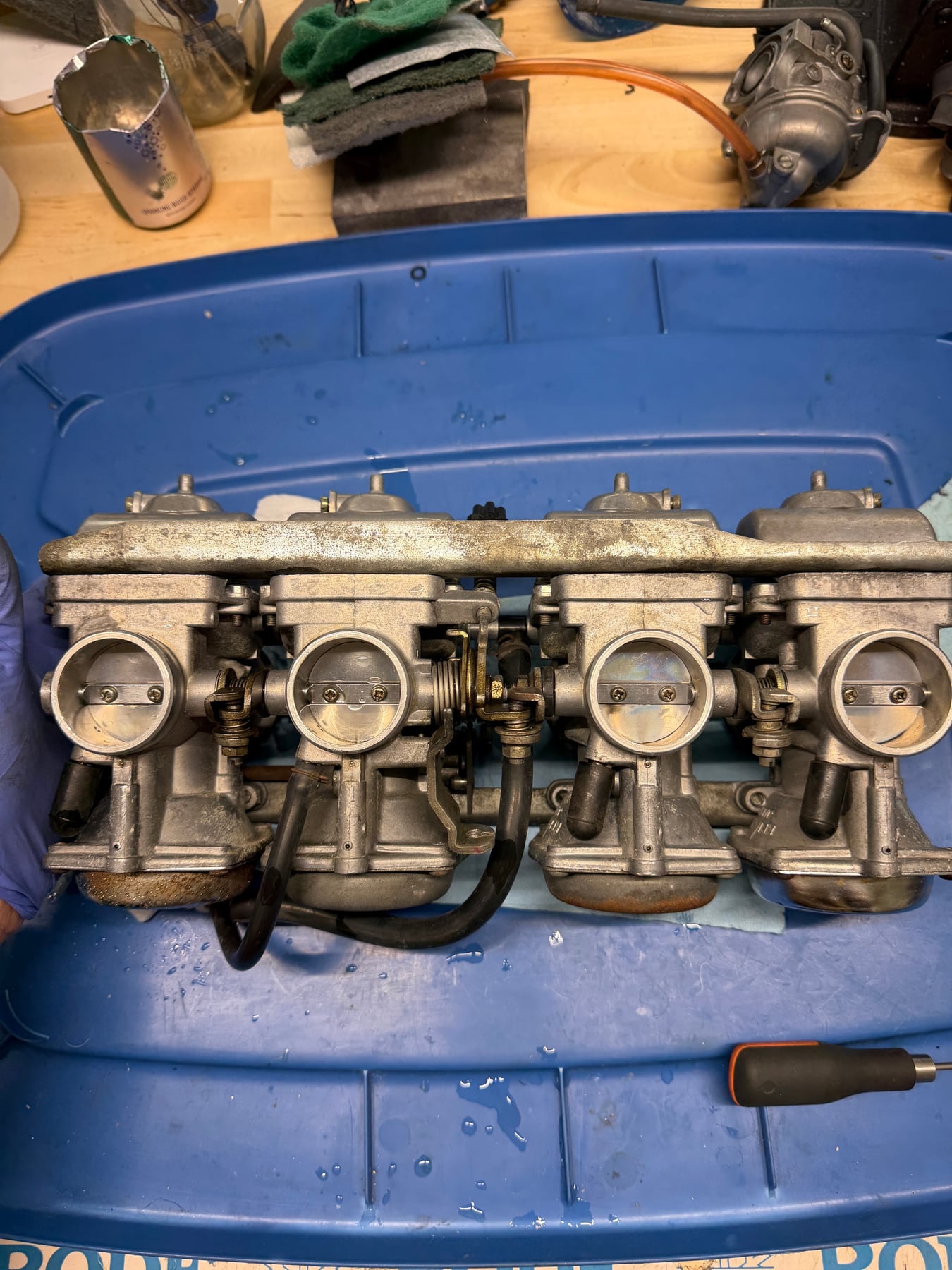

The carburetor bank was removed and fully disassembled. Internal passages, jets, bowls and fuel circuits were cleaned and inspected. Worn O-rings and rubber seals were renewed, the leaking inter-carburetor fuel connection was corrected, and the carburetors were reassembled and installed. The recovery also included fresh engine oil and attention to the deteriorated plug boots and intake connections.
The result
After reassembly and initial setup, the GPZ750 started promptly for the first time in roughly 15 years. A long-stored motorcycle still needs careful checks of its brakes, tires, chain and electrical system before regular road use, but restoring reliable fuel delivery was the key step that brought this Kawasaki back to life.
Repair Photos
